Cheap 865-928MHz UHF RFID EPC Gen2 Smart Card Desktop USB Tag Reader Writer
Characteristics
Absolute Maximum Rating
| ITEM | SYMBOL | VALUE | UNIT |
| Power Supply | VCC | 5 | V |
| Operating Temp. | TOPR | -20~+60 | C |
| Storage Temp. | TSTR | -25~+70 | Electrical and Mechanical Specification |
Electrical and Mechanical Specification
Under TA=25C,VCC=+5V unless specified
| ITEM | SYMBOL | MIN | TYP | MAX | UNIT |
| Power Supply | VCC | 3.3 | 5 | 5.5 | V |
| Current Dissipation | IC | | 90 | 150 | mA |
| Frequency | FREQ | 902 | | 928 | MHz |
| Effective Distance | Dis | 0 | 100 | 150 | mm |
Effective distance depends on protocol, tag and environment

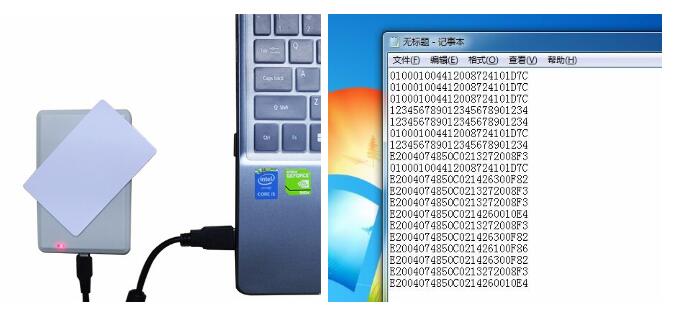

Sample Pictures
Features
1.Self-intellectual property;
2.Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;
3.Advanced tag processing algorithm, high identification rate;
4.Built-in antenna with effective distance up to 100mm;
5.Low power dissipation design;
6.USB interface to get power from computer
7.Provide DLL and Demonstration Software Source code to facilitate further development;
User Manual
This USB UHF desktop reader/writer can work as reader only or reader& writer, so the user manual also difference.
1. Emulate keyboard stroke (read only)
Step one:Connect reader with PC /laptop through USB interface
Step two:Open Notepad or a word document, click mouse, put card on the reader,the card number will output on the notepad or word document.
2. USB UHF reader writer
Step one: Connect reader with PC /laptop through USB interface, put card on the reader
Step two:Open demo software, click "open com port"
Step three: Click "EPC GEN2 Test", click "Query tag", then the card EPC number will output on the right list.
Product Applications
1. Manufacturing management, goods flow management, warehouse management, and the flow management of mail, parcel and luggage, etc.
2. Library management, school management, asset management, inventory management, attendance management, etc.
Our Service
1, 12 months warranty
2, ODM/OEM customization services according to your needs.
3, Completely Free SDK and technical support for you.
4, Fast Delivery Time: 1-3 working days for sample order; 5-15 working days for bulk order
5, Fast Response: Reply inquiries within 24 hours
FAQ
1. Are you a factory?
Yes, we’re a factory that manufactured UHF RFID Readers and Antenna since 2010. Warmly welcome to visit our factory!
2. We are not an expert buyer in your technology, what information do you need from us to quote ?
Dear friend, please inform us clearly you use reader in what working environment of project, what goal do you want to achieve, we would propose you the suitable product in good price.
