Home > Mid Range RFID Reader >

EPC Gen2 UHF Long Range Reader 8dbi Antenna Wiegand 26 RS232

Product Categories

ShenZhen ZKHY RFID Technology Co., Ltd.

Contact Now

Name: EPC Gen2 UHF Long Range Reader 8dbi Antenna Wiegand 26 RS232
Brand: ZKHY
Price: 1 USD

Brand Name : ZKHY

Model Number : ZK-RFID101

Place of Origin : China

MOQ : 1pc

Price : USD, Negotiable

Payment Terms : T/T ，western Union，Paypal

Supply Ability : 10,000pcs per month

Delivery Time : 3~5 days after payment confirmed

Packaging Details : Packed in carton

Working Frequency : 865 ~ 868MHz

RF output : 30dbm(adjustable)

Antenna : Built-in 8dbi

Communication Interface : RS232, RS485, Wiegand26, Wiegand34

Dimension : 255*255*60mm

Input Power : DC+9V (Power Adapter)

Material : ABS

Work Mode : FHSS

Contact Now

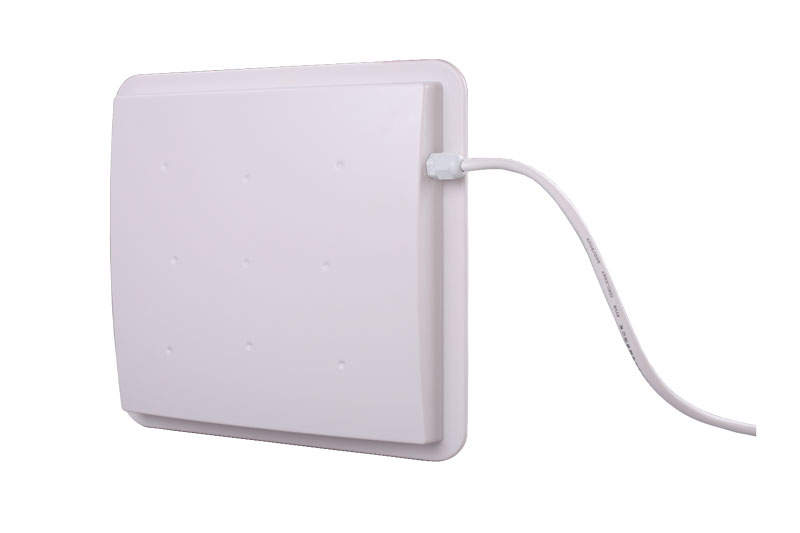

EPC Gen2 UHF Long Range Reader 8dbi Antenna Wiegand 26 RS232

Description:

ZK-RFID101 is a 5m mid range UHF RFID Integrated Reader. Item can be applied in automotive flow control, access control, etc..

Competitive Advantage:

Specifications:

Model	ZK-RFID101
Protocol	ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Work Frequency	865~868MHz
Frequency Hopping	FHSS
Power Output	0-30dBm(adjustable)
Antenna	Built-in 8dBi circular polarization antenna
Interface	RS232, RS485, wiegand 26/34, with Ethernet, WIFI, LED optional
Operating Mode	Auto-running, interactive and trigger-activating
Read Range*	0~5m
Reading Clue	Buzzer
Input Power	100-240V, DC+9V (Power Adapter)
Dimension	25525560mm
N.W	900g
G.W	2300g
Operation Temp	-25°C~+70°C
Storage Temp	-25°C~+80°C
Humidity	80%
Additional services	Free Demo&SDK provided

* Effective distance depends on protocol, antenna, tag and environment.

Applications:

Automotive flow control, goods flow management, warehouse management, and parcel/luggae flow management, etc.
Production line management.
Other fields: library management, asset management, inventory management, attendance management, etc.
